產品特征product features

Light Distribution : Narrow angle spotlight, spotlight, middle angle glimmer and polarizing。

Material:Lamp shell -ADC12  is die-cast aluminum; The base bracket  is  aviation aluminum alloy lamp body;

               The surface glass is 4mm ultra white steel safety glass and transmittance 93%

Surface Treatment:  The three level hard anode oxidation process is adopted in military industry,  and the thermal conductivity can reach 230W/m*K.
                                  The lamp body is anti UV polyester powder, and outdoor grade spray series with anti UV10 years protection;

Driving Method : Built in constant current drive and automatic encoding on power and support RDM and high temperature overload protection.。

Installation : Built in constant current drive and automatic encoding on power and support RDM and high temperature overload protection.。

Installation :The lamp is equipped with SUS304 stainless steel bracket with gear locking function. The minimum adjustment angle is 5 per grid.Outlet wire 0.5m，
                     4pins wire 2 x0.75 mm2 + 2pins wire  2 x 0.5mm2 and 2 x1.5 mm2 rubber cable connector (Dimming ,RGB, RGBW version).Outlet wire 0.5m，2 pins
                     wire 2 x1.5 mm2 or 3 x1.5 mm2 rubber cable connector(ON/OFF version).

Option : Beam angle, surface  spray colors ,anti-glare device and outlet wire length。

產品細節product details

產品尺寸Product Size

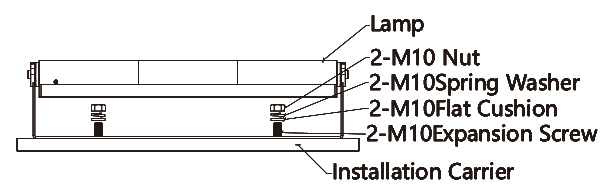

安裝方式Installation method

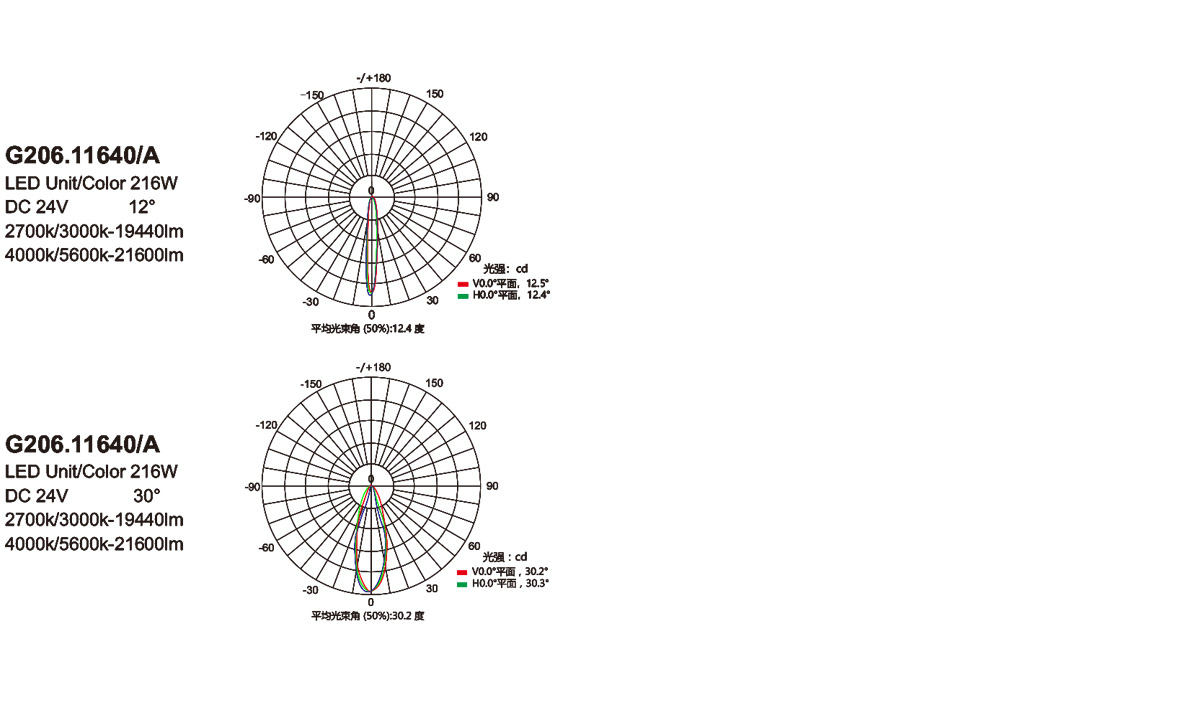

配光曲線Light distribution curve

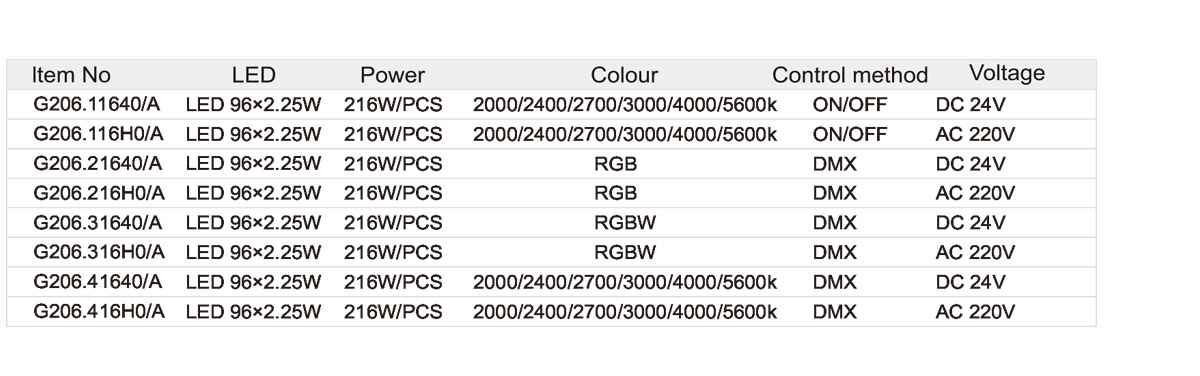

規格參數Specifications
