L2 high brightness and high density linear LED lamps are suitable for the installation of super-large building facades. The mixing effect is excellent. The hidden line installation design is adopted. The transmission signal of the lamps is controlled by two parallel lines. It can adjust the angle from 0 to 110 degrees.The square PC optical transmitter design does not affect the color temperature of the LED. The drainage structure can realize ON/OFF, dimming, RGB and video broadcasting. It is suitable for the ambient temperature of 35 ~55 degrees. The service life of lamps and lanterns is more than 35000 hours.
Material :the lamp body is 6063 tensile aluminum alloy;The side cover is 6063 aluminum alloy .The len is PMMA,The surface is original imported clear PC cove;The installation bracket is 6063 aluminum alloy;The transparent surface is weathering glue waterproof PU .The screw is stainlese steel.
Surface Treatment : ALL external lighting componets and parts of the holder -Mechanical and chenmical anti-corrosion treatment,Akesu,Nobel ultraviolet
resistant polyester powder and outdoor grade spraying system or oxidation treatmentand conventional anti-uv5 years protection。
Electric Appliance: Built-in electronic drive with over temperature overload protection.
Installation :Outlet wire 0.15m;3 cores cable 0.3m㎡and2 cores cable 1.5m㎡rubber cable（DMX Dimming , RGB version)。
Outlet wire 0.15m ;2 cores cable wire 0.75mm2 (ON/OFF version )

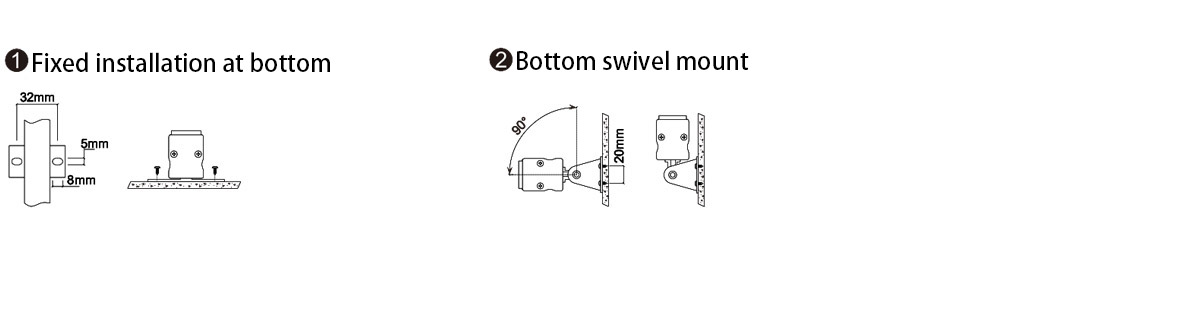

Option :Flat bottom bracket or rotated bracket, the surface spray colors; outlet cable length
