產品特征product features

Light Distribution :Narrow angle spotlight, spotlight, middle angle glimmer and polarizing。

Material: Lamp shell -ADC12  is die-cast aluminum; The base bracket  is  aviation aluminum alloy lamp body;

                The surface glass is 4mm ultra white steel safety glass and transmittance 93%

 Surface Treatment: The three level hard anode oxidation process is adopted in military industry,

                                   and the thermal conductivity can reach 230W/m*K. The lamp body is anti UV polyester powder,

                                   and outdoor grade spray series with anti UV10 years protection;

Driving Method :Built in constant current drive and automatic encoding on power and support RDM and high                                             temperature overload protection。

Installation :The lamp is equipped with SUS304 stainless steel bracket with gear locking function. The minimum                                   adjustment angle is 10° per grid.Outlet wire 0.5m，5cores wire 2 x1.0 mm2 + 3 x 0.3mm2  rubber cable                             connector (Dimming ,RGB, RGBW version).Outlet wire 0.5m，2 cores wire 2 x075 mm2  rubber cable                                 connector(ON/OFF version).

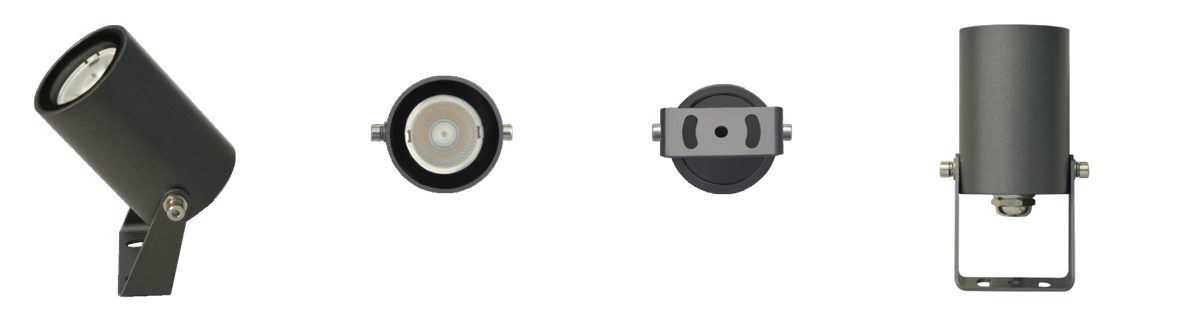

產品細節(jié)product details

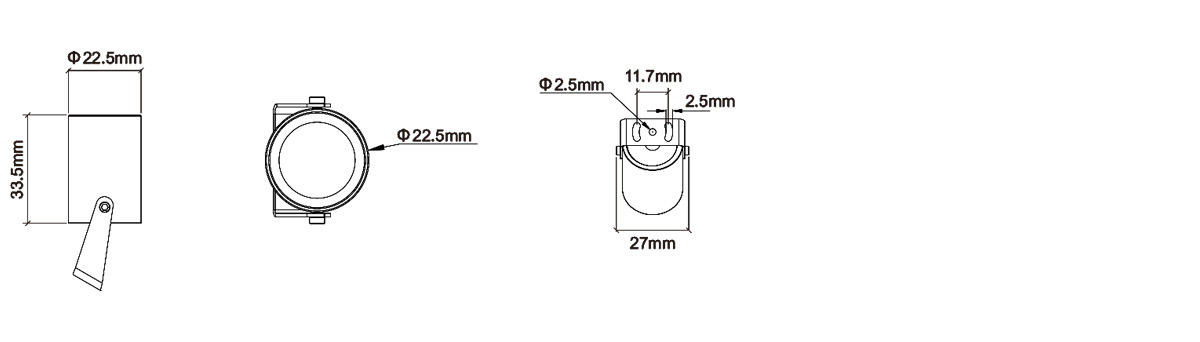

產品尺寸Product Size

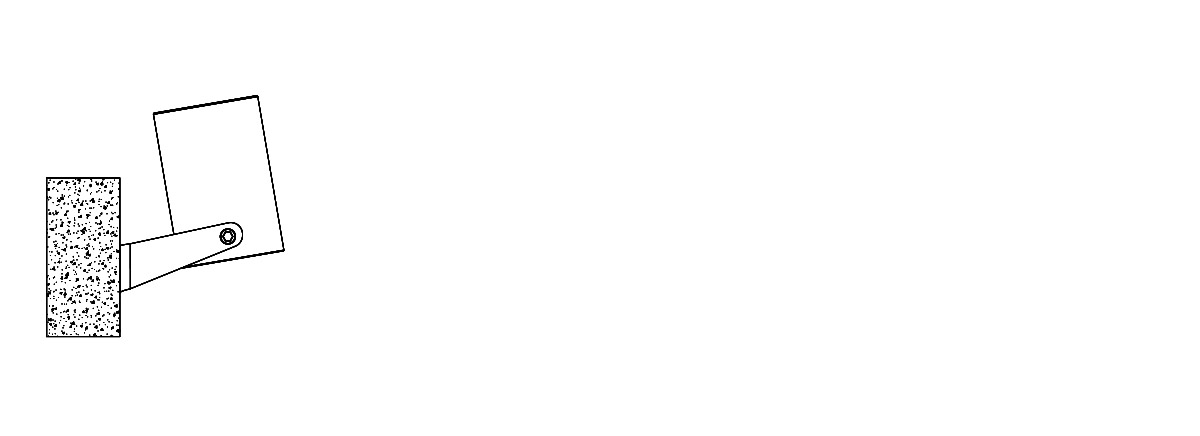

安裝方式Installation method

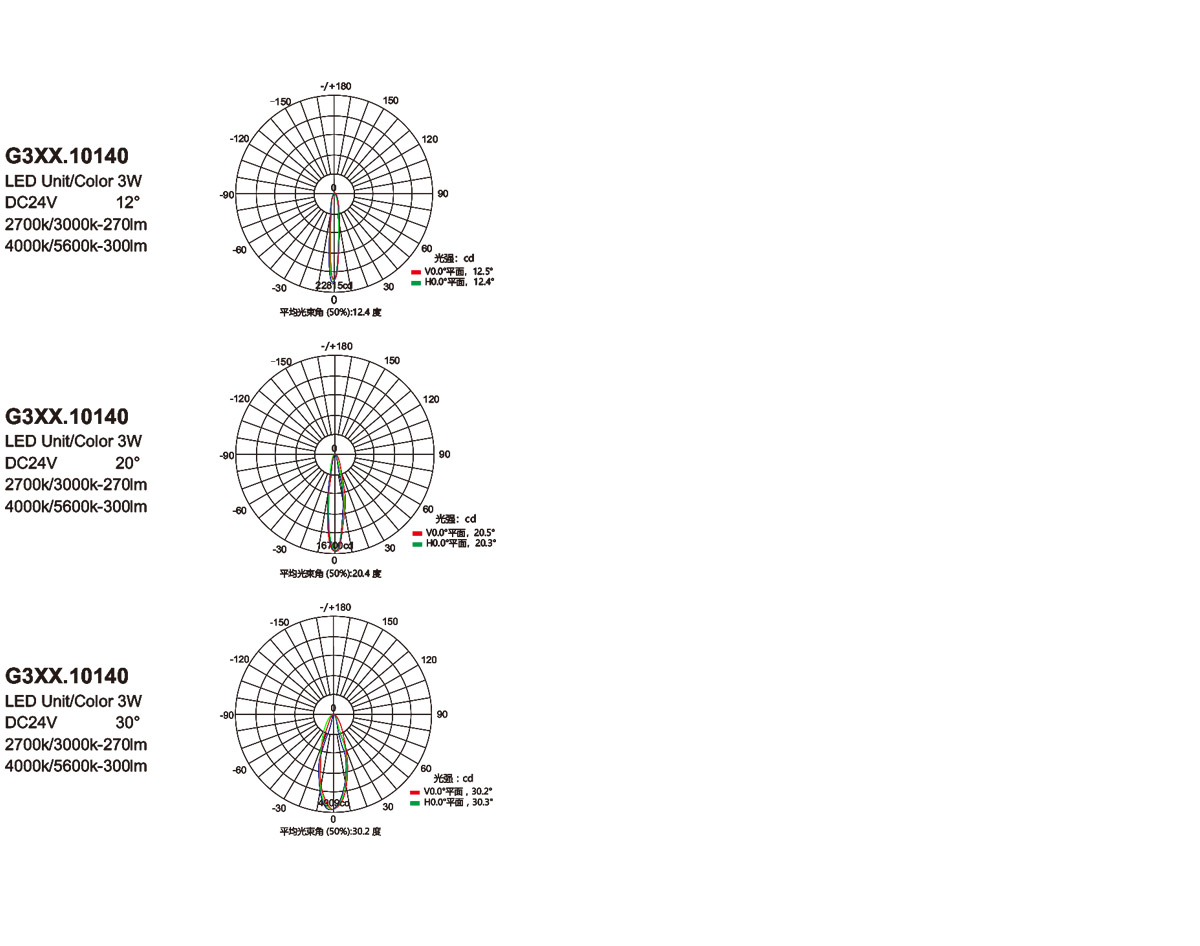

配光曲線Light distribution curve

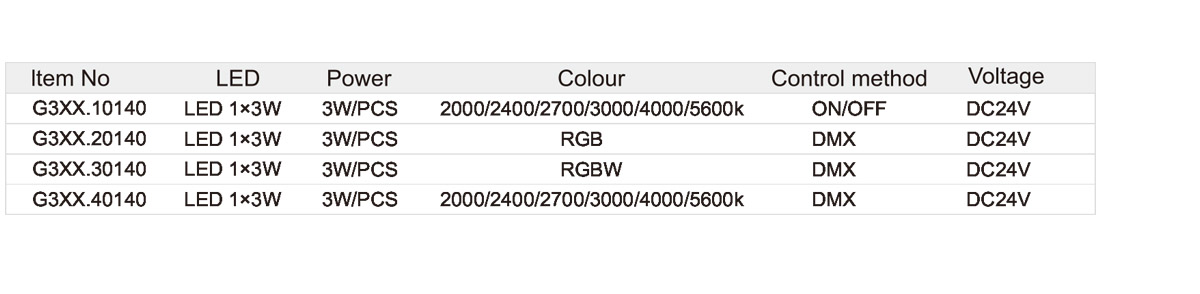

規(guī)格參數(shù)Specifications
