A23 LED Pixel Dot Light is one kind of control lighting pixel light. People can observe the lighting brightness uniformity from far to near place. It is used indoor and outdoor building decoration.The lamp body is adopted die-casting aluminum and the transfer signal is the standard DMX512 control technology and auto-addressing code function with 16bit dimming,0-65536 grade gray level precise Gamma Correction Algorithm. The colors change smooth delicate. It is fit for the different outline, higher building outdoor advertisement screen. It can reach dimming. RGB, RGBW ,Video playing etc. The working temperature is-35℃~+55℃.The lamp life time is more than or equal to 35000hours.
Material:Lamp body is made by Die-casting Aluminum alloy and anti-fire ABS;5*1.5mm2 weather
resistant flat connect; Light guide system is clear PC cover; Light control accessories are PMMA len.
Surface Treatment : The lamp body is finished by one time. The lamp lanterns external parts of mechanical and chemical anti-corrosion treatment and Akesu Nobel ultraviolet
resistant polyesterpowder,outdoor grade spraying or oxidation treatment import weathering PU sealant.
Electric Appliance:Built-in electronic drive with over temperature overload protection.
Installation :Outlet wire 0.15m is anti-fire flat cable wire 5x1.5m㎡（DMX Dimming、RGB version)。
Outlet wire 0.15m is anti-fire flat cable wire is anti-fire flat cable wire 2x1.5m㎡(ON/OFF version )

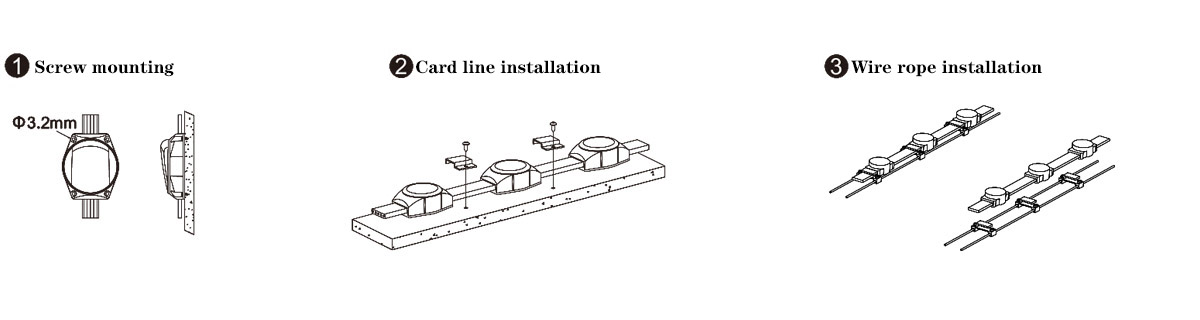

The integrated installation:6Dots/Meter/72Dots/12M/PC and various installation methods:(Fixed Clip Installation or Screw Fixed Installation）。
Option : Customed outlet wire length or lamp body color。
