A28 LED Pixel Dot Light is one kind of bigger and outward appearance control lighting pixel light. It is used indoor and outdoor building decoration.The lamp body is adopted die-casting aluminum and the transfer signal is the standard DMX512 control technology and auto-addressing code function with 16bit dimming,0-65536 grade gray level precise Gamma Correction Algorithm. The colors change smooth delicate. It is fit for the different outline, higher building outdoor advertisement screen. It can reach dimming. RGB, RGBW Video playing etc. The working temperature is at -35℃~+55℃.The lamp life time is more than or equal to 35000hours.
Material:Lamp body is imported PC and anti-fire ABS;5*1.5mm2 weather resistant flat connect; Light guide system is clear PC cover; Light control accessories are PMMA len.
Surface Treatment : The lamp body is finished by one time. The lamp lanterns external parts of mechanical and chemical anti-corrosion treatment and Akesu Nobel
ultraviolet resistant polyesterpowder,outdoor grade spraying or oxidation treatment import weathering PU sealant
Electric Appliance:Built-in electronic drive with over temperature overload protection.
Installation :Outlet wire 0.15m is anti-fire flat cable wire 5x1.5m㎡（DMX Dimming , RGB version)。
Outlet wire 0.15m is anti-fire flat cable wire is anti-fire flat cable wire 2x1.5m㎡(ON/OFF version )

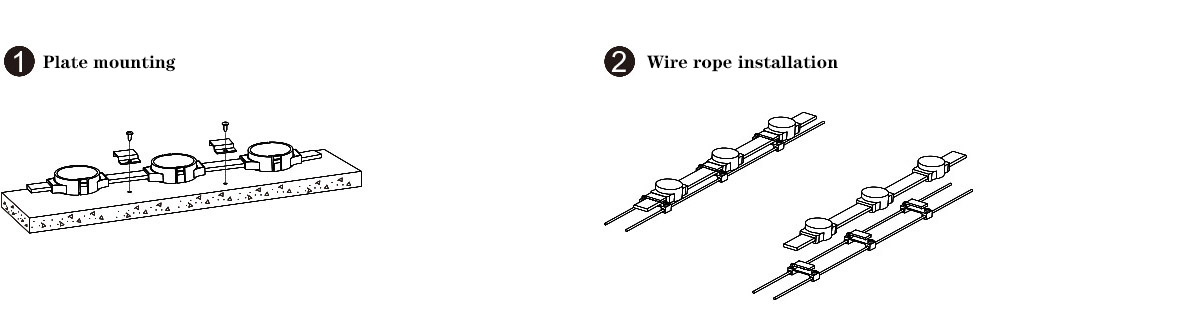

The integrated installation:6Dots/Meter/72Dots/12M/PC and various installation methods:(Fixed Clip Installation or Screw Fixed Installation）。
Option :Customed outlet wire length or lamp body color。
